Vertical Machining Center
Vertical Machining Center
Frequency-Conversion Yield-Ahead Disk Type(VDM)
Features
- Inverter control, reduce magazine vibration, upgrade tool change stability.
- No brake motor, solve wear out problem of the brake piece.
- Yield-Ahead patent, insure spindle and ATC life time.
- Upgrade to servo motor as option.

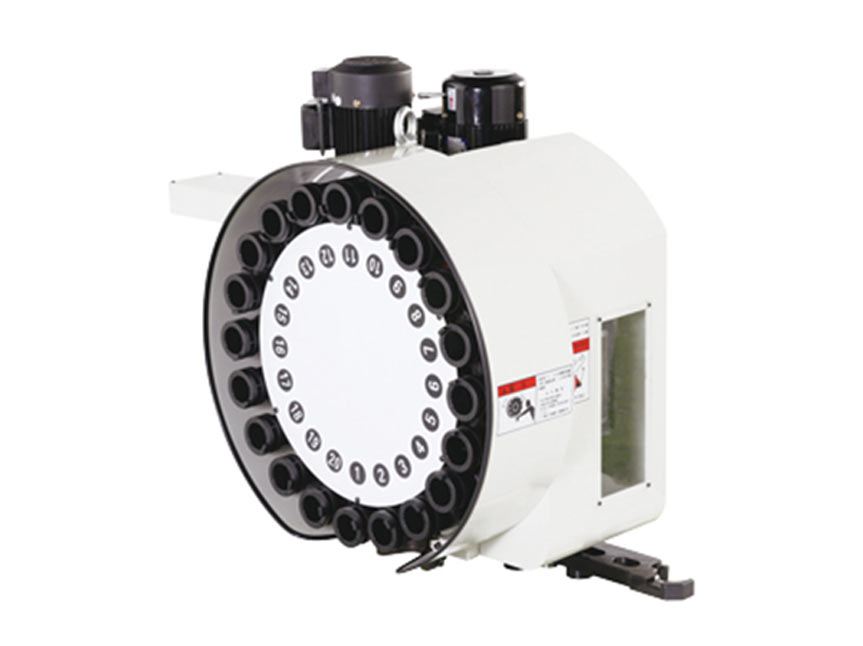

Frequency-Conversion Yield-Ahead Disk Type (VDM) (#40-20T)

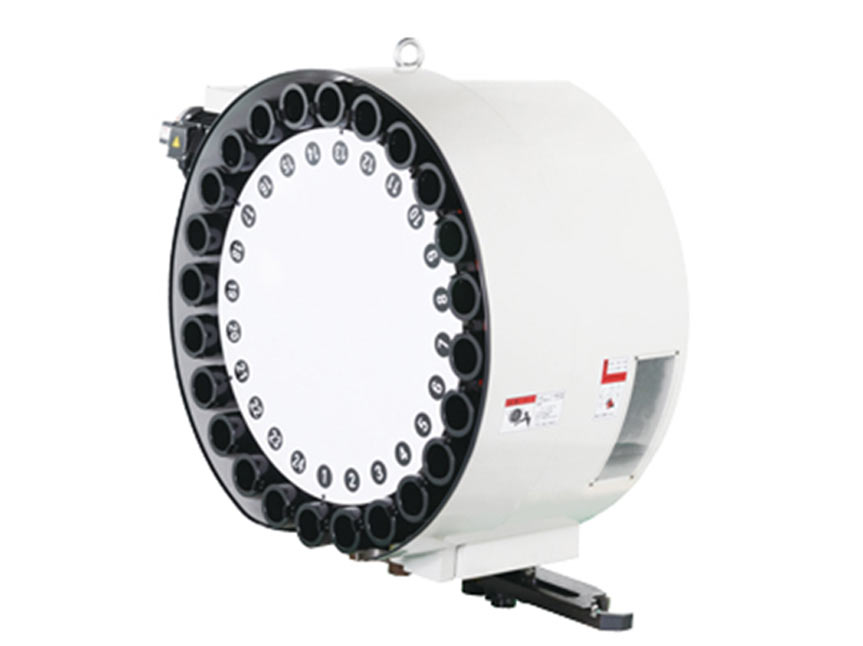

Frequency-Conversion Yield-Ahead Disk Type (VDM) (#40-24T)
Standard disk type (HCG B) / Frequency conservision disk type (VDM) tool change motion
Vertical Machining Center
Frequency-Conversion Yield-Ahead Disk Type
| Item | #30 | #40 | #50 |
|---|---|---|---|
| Tool Max. Dia. | Ø65 | Ø78 | Ø112 |
| Tool Max. Dia. without Adjacent Tools | Ø130 | Ø150 | Ø200 |
| Tool Max. Length | 250mm | 300mm | 350mm |
| Tool Max. Weight | 5kg | 7kg | 18kg |
| Tool Capacity | 20/24T | 16/20/24/28/30/36T | 20/24/30T |
| ATC Tool Change Time | 1.3sec/60Hz 1.55/50HZ | 1.8sec/60Hz 2.0sec/50Hz | 2.50sec/60Hz 2.91sec/50Hz |
