Vertical Machining Center
Vertical Machining Center
Chain Type(VCH)
Features
- Cam wheel indexer features high indexing accuracy.
- Easy PLC, tool pot positioning correctly.
- Light weighted tool arm, small load and low inertia.

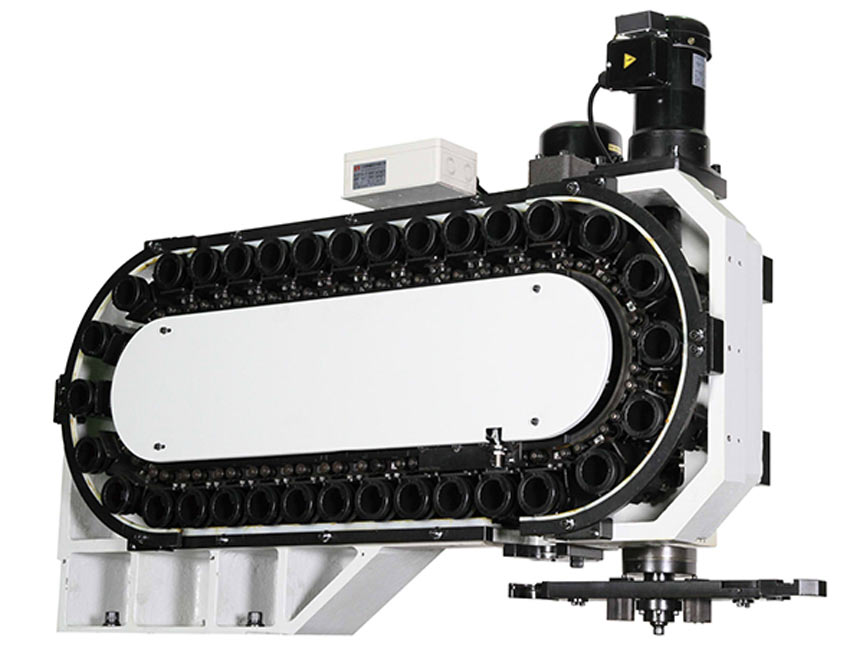

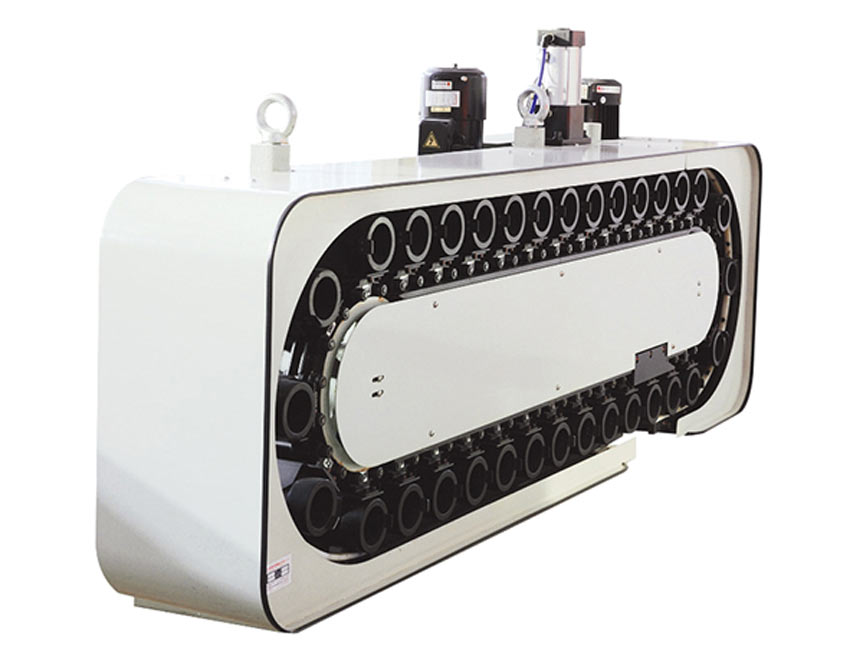

Chain Type (VCH) (#50-40T)
Chain Type (VCH) (#50-32T)
Chain Type (VCH) (#40-32T)
Chain type (VCH) tool change motion 1
Chain type (VCH) tool change motion 2
Vertical Machining Center
Chain Type
| Item | #40 | #50 |
|---|---|---|
| Tool Max. Dia. | Ø75 | Ø125 |
| Tool Max. Dia. without Adjacent Tools | Ø120 | Ø250 |
| Tool Max. Length | 300mm | 350mm |
| Tool Max. Weight | 8kg | 18kg |
| Tool Capacity | 32/40/60/80T | 32/40/60T |
| ATC Tool Change Time | 1.8sec/60Hz 2.0sec/50Hz | 2.50sec/60Hz 2.91sec/50Hz |
