Kunshan Royli Precision Tools Corporation LTD.
Product List

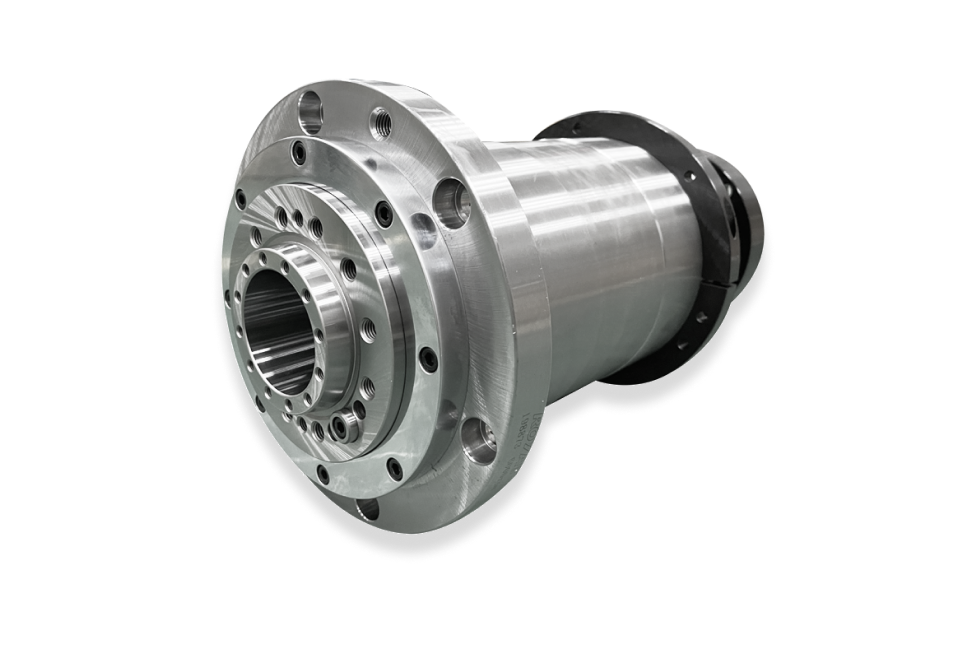

Turning Spindle
Features
- High Stiffness
- High Stability
- High Precision
| Spindle Model | Spindle OD (mm) |
Max. Speed (r.p.m.) |
Nose | Spindle Bore Hole (mm) |
Bearing ID (mm) |
Bearing Lubrication | Drive Type |
|---|---|---|---|---|---|---|---|
| KRA4001 | ø120 | 8000 | A2-4 | 36 | ø60 | Grease | Belt |
| KRA4007 | ø150 | 8000 | A2-4 | 45 | ø70 | Grease | Belt |
| KRA5039 | ø170 | 5000 | A2-5 | 56 | ø80/ø75 | Grease | Belt |
| KRA5026 | ø170 | 6000 | A2-5 | 56 | ø80 | Grease | Belt |
| KRA5501 | ø180 | 4500 | A2-5 | 56 | ø90/ø80 | Grease | Belt |
| KRA6023 | ø200 | 4500 | A2-6 | 66 | ø100/ø90 | Grease | Belt |
| KRA6505 | ø200 | 5500 | A2-6 | 62/75 | ø100 | Grease | Belt |
| KREA501 | ø200 | 8000 | A2-5 | 56 | ø80 | Grease | Bulit-in Motor |
| KRA8019 | ø230 | 3500 | A2-8 | 86 | ø120/ø110 | Grease | Belt |
| KRA8001 | ø260 | 3500 | A2-8 | 92 | ø130/ø120 | Grease | Belt |
| KRA1113 | Ø286 | 2800 | A2-11 | 117.5 | Ø160/Ø150 | Grease | Belt |
