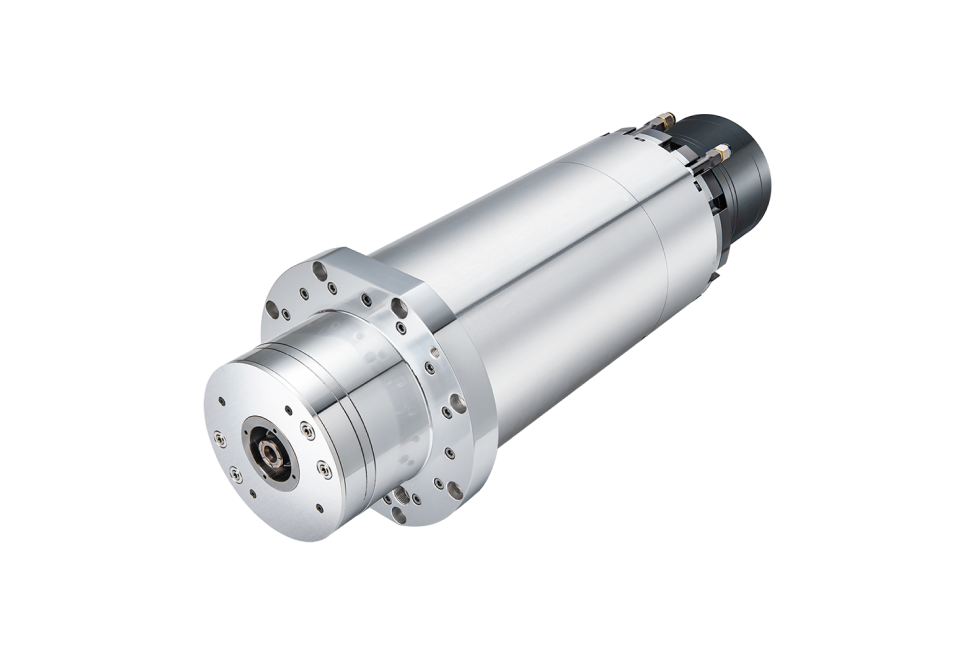

Built-in Motor Spindle
Features
- High Speed
- High Cutting Efficiency
- Low Vibration、Excellent Dynamic Characteristics
| Spindle Model | Spindle OD (mm) |
Max. Speed (r.p.m.) |
Tool Interface | Clamping Force (kgf) |
Bearing ID (mm) |
Bearing Lubrication | Motor Sepc. | Motor Power S1 (kW) |
Motor Torque S1 (Nm) |
ENERGY LABEL |
|---|---|---|---|---|---|---|---|---|---|---|
| KRE3501 | ø120 | 30000 | BBT30 | 300±50 | ø45/ø35 | Grease | FANUC BiI56L 40000-B | 7.5 | 6 | |
| KREH004 | ø120 | 30000 | HSK E40 | 680±50 | ø45/ø35 | Grease | IM90-L100-4P-SI(380V) | 7.5 | 6.1 | |
| KREH016 | ø120 | 36,000 / 30,000 | HSK E40 | 680±50 | ø45/ø35 | Oil-air / Grease | FANUC BiI56L 40000-B IM90A-L100-4P-DI-220V | 7.5 | 6 | |
| KREH005 | ø150 | 10000 | HSK E50 | 1100 ~ 1500 | ø60/ø45 | Grease | IM110-L120-4P-SI (4 poles) | 7.5 | 12 | |
| KREH017 | ø170 | 24,000 / 20,000 | HSK A63 | 1800~2300 | ø70/ø50 | Oil-air / Grease | FANUC BiI 90L/25000-B | 18.5 | 26 | |
| KREH015 | ø170 | 30,000 / 24,000 | HSK E50 | 1100 ~ 1500 | ø55/ø40 | Oil-air / Grease | FANUC BiI 80M/30000-B | 11 | 15 | |
| KREH010 | ø200 | 10000 | HSK A100 | 4500 ~5800 | ø100/ø80 | Grease | LSM170220-PM8P-001 | 37.7 | 120 | |
| KREH003 | ø210 | 17000 | HSK A63 | 1800 ~2300 | ø70/ø55 | Grease | FANUC Bil 112M/20000 | 11 / 18.5 | 63 / 20 | |
| KREH013 | ø230 | 10,000 / 6,000 | HSK A100 | 4500 ~5800 | ø100/ø80 | Oil-air / Grease | FANUC Bil 132L/15000-B | 15 / 18.5 | 161 / 80.3 | |
| KREH009 | ø290 | 10000 | HSK A100 | 4500 ~5800 | ø100/ø70 | Oil-air | ATE NO.254 0060 AC240/330/6 380V | 25 / 25 | 298 / 80 | |
| KREH014 | ø310 | 10,000 / 6,000 | HSK A100 | 4500 ~5800 | ø100/ø70 | Oil-air / Grease | Fanuc BiI 160LL/13000-B | 18.5/37 | 305/196 | |
| KRE0002 | Planetary Grinding Spindle | 30000 | M12xP1.0 Wheel Holder Extensions | NA | ø30/ø15 | Grease | IM70-L40-4P-SI 220V | 2 | 0.6 |
