HONGJU Precision Machinery Co., LTD.
Product
Double Column Machining Center
Horizontally mounted type
Double Column Machining Center
Horizontally mounted type(DCM-H)
Features
Servo drive magazine features high efficiency and precision. (Electric motor optional)
Tool carrier seat slides on linear bearing, has rapid and accurate positioning; also protect tool magazine from dust.
The tool gripper is positioned by rigid carrier seat, steady and fixed storage direction, suitable for high speed operation.
Drive by servo motor has high tool change efficiency.
Suitable for high speed spindle machine (5 axis, crane-double column).

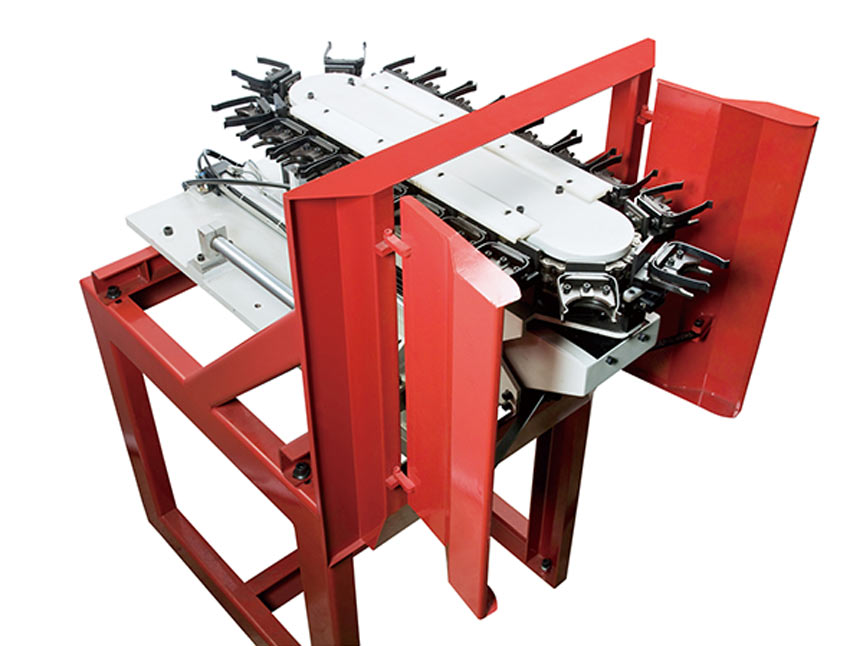

Crane – Horizontally mounted type (DCM-H) – include auto door

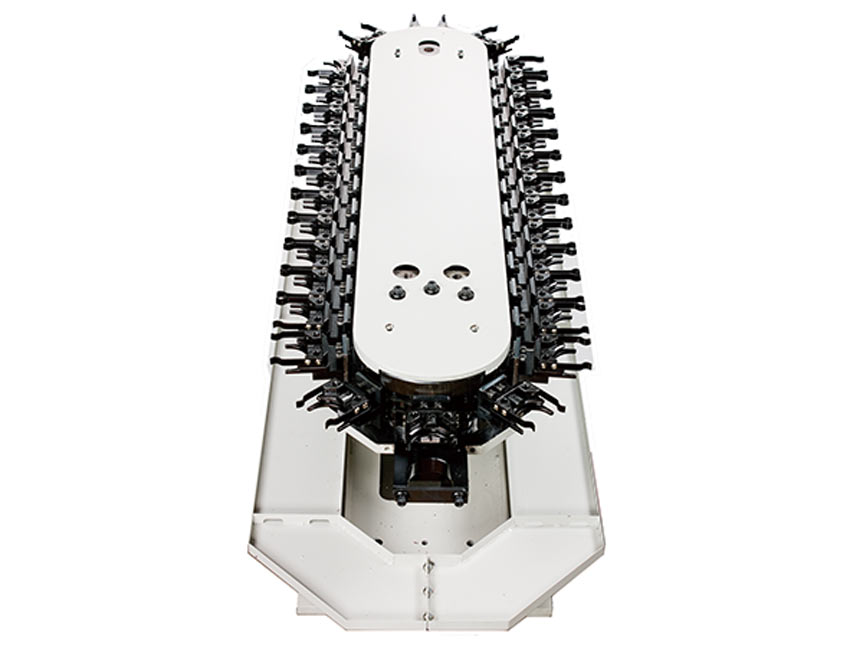

Crane – Horizontally mounted type (DCM-H)

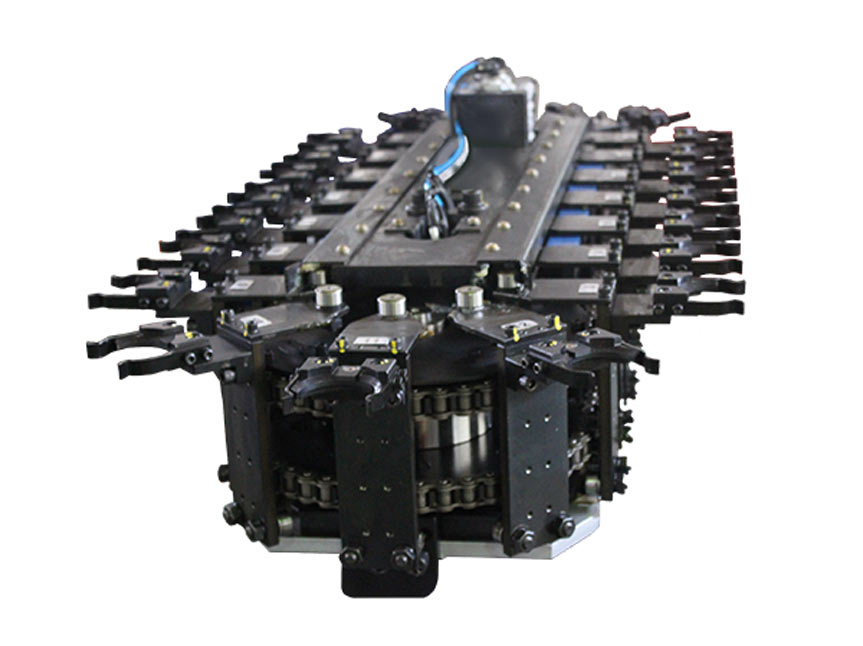

Crane – Horizontally mounted type (DCM-H)(#50-30T)
Double Column Machining Center
Horizontally mounted type
規格表
Item
#40
#50
Tool Max. Dia.
Ø75
Ø125
Tool Max. Dia. without Adjacent Tools
Ø125
Ø200
Tool Max. Length
300mm
350mm
Tool Max. Weight
8kg
15kg
Tool Capacity
20/24/32/40T
20/24/32/40T
ATC Tool Change Time
0.35sec
0.40sec
