Double Column Machining Center
Double Column Machining Center
For Overhead Crane-Closed Tool Warehouse Type(DCM-A)
Features
- Optional vertical and horizontal tool change
- Hydraulic tool arm, hanging chain, allow larger tool weight (20-25kg)
- Allowable tool length: 500mm
- Landed tool magazine installation

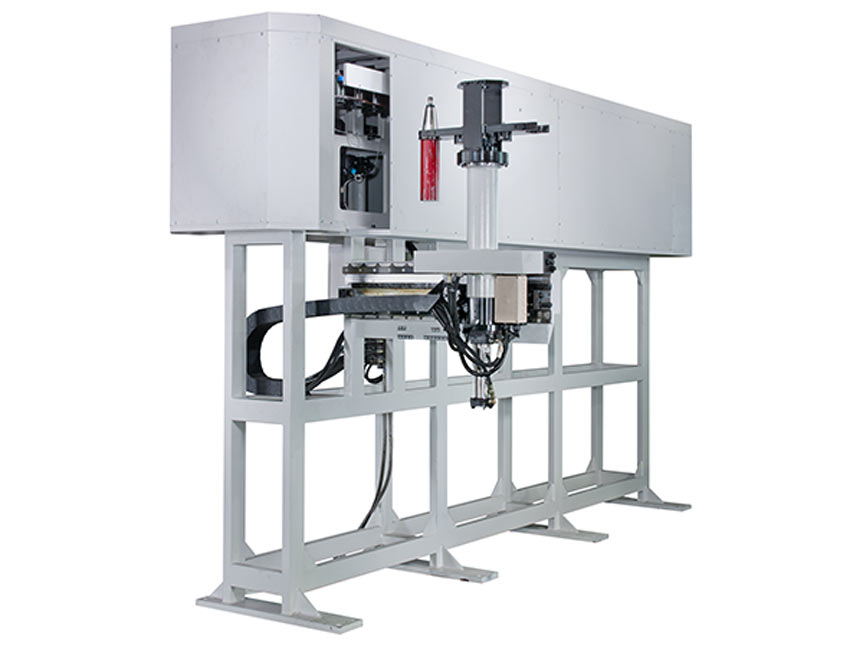

For overhead crane-closed tool warehouse type (DCM-A) - part

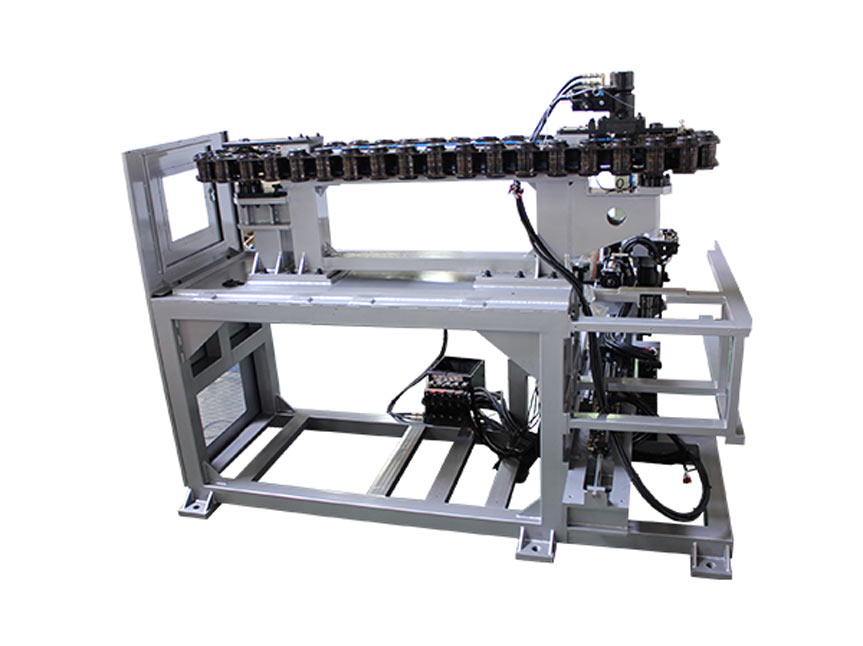

For overhead crane-closed tool warehouse type (DCM-A) - part

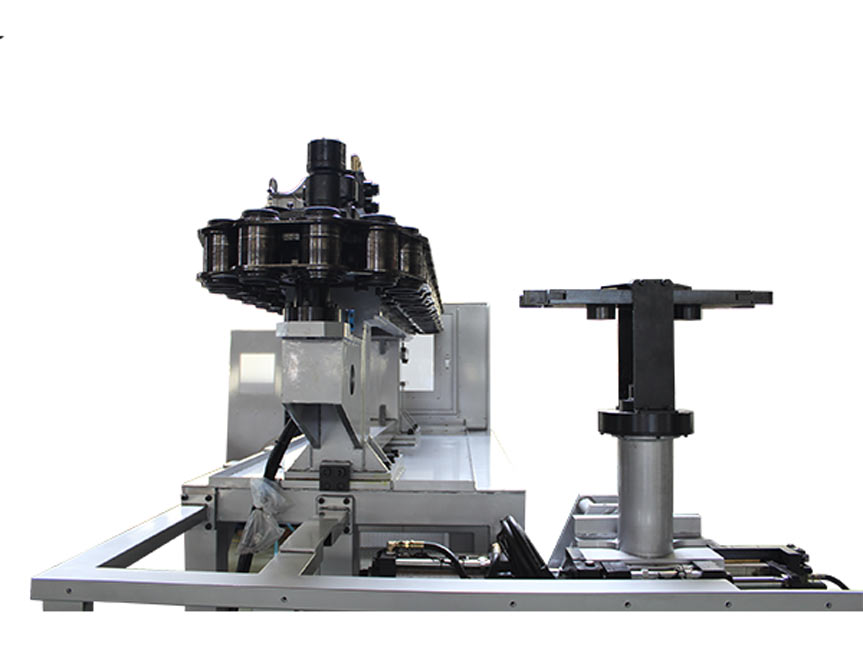

Crane - Closed type (DCM-A) (#50-30T)
Double Column Machining Center
For Overhead Crane-Closed Tool Warehouse Type
| Item | #40 | #50 |
|---|---|---|
| Tool Max. Dia. | Ø95 | Ø125 |
| Tool Max. Dia. without Adjacent Tools | Ø190 | Ø190 |
| Tool Max. Length | 350mm | 500mm |
| Tool Max. Weight | 12kg | 20kg |
| Tool Capacity | 24/32/40/60/80T | 40/60T |
| ATC Tool Change Time | 6.3sec/60Hz | 10sec/60Hz |
