Double Column Machining Center
Double Column Machining Center

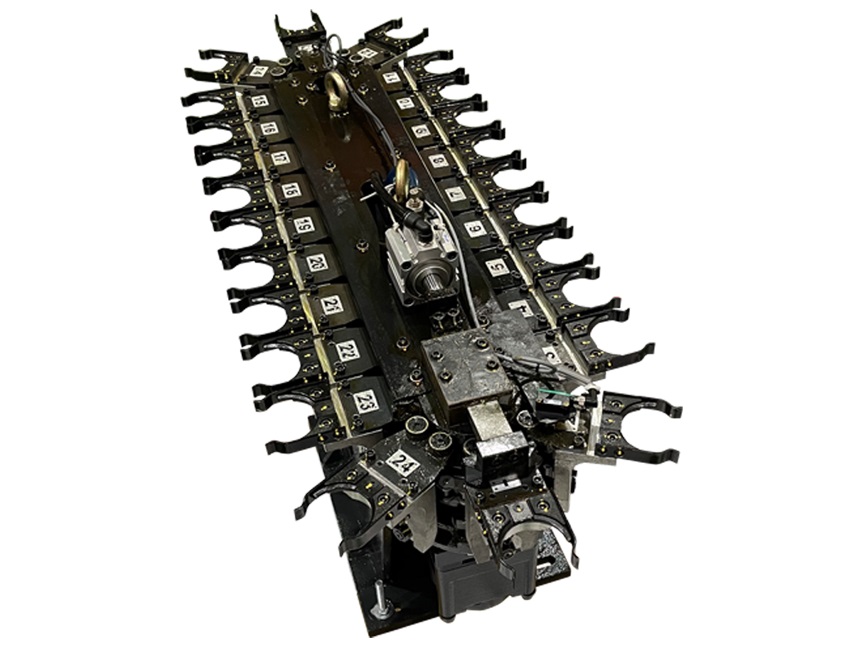

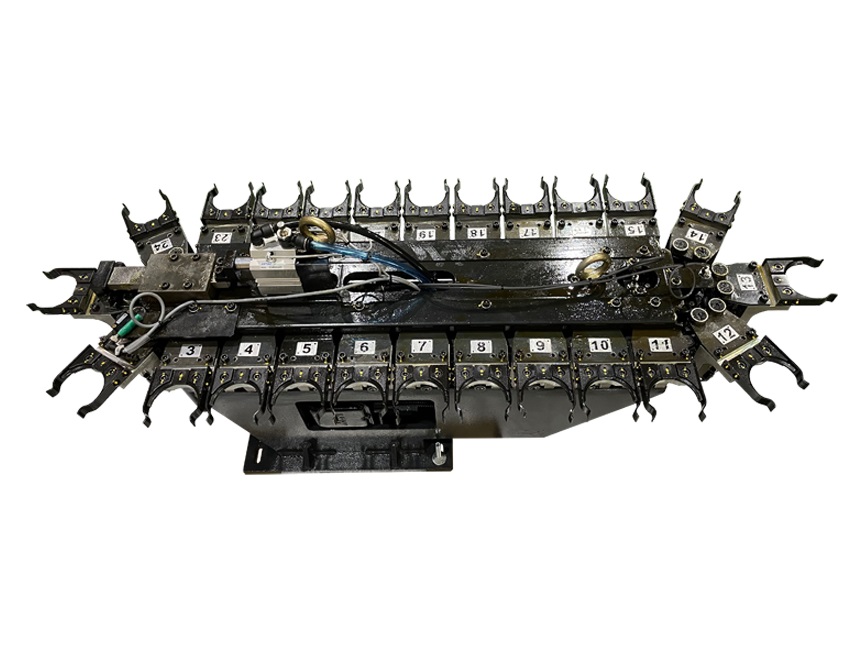

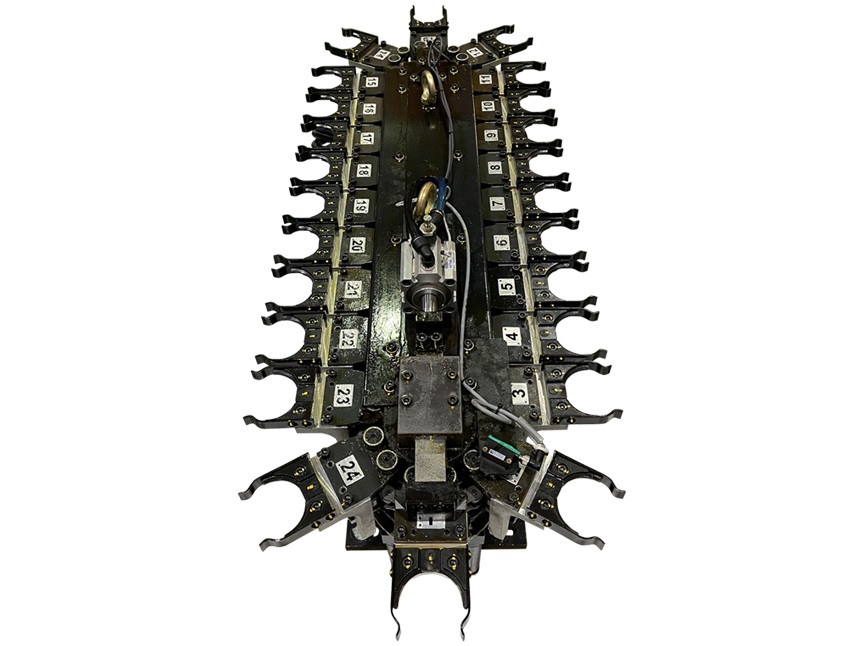

Horizontally Mounted Type(DCM-H-C4009)
Features
- The sliding seat adopts linear bearing, this make tool change accurate and fast.
- The tool grippers are positioned by rigid carrier seat, steadyand fixed storage direction.
Horizontally Mounted Type
Horizontally Mounted Type
Horizontally Mounted Type
Double Column Machining Center
Horizontally Mounted Type
| Item | #40 |
|---|---|
| Tool Max. Dia. | Ø75 |
| Tool Max. Length | 400mm |
| Tool Max. Weight | 8kg |
| Tool Capacity | 60T |
| ATC Tool Change Time | 0.72sec/50Hz |
