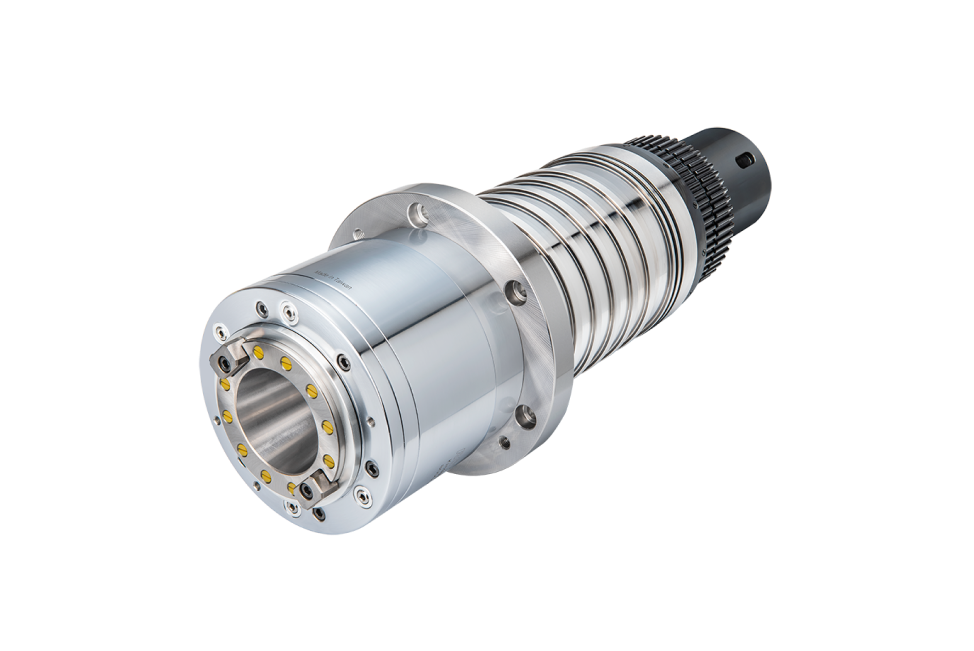

Belt Drive Spindle
Features
- High Stiffness
- Simple Structure
- Competitive Cp Value
| Spindle Model | Spindle OD (mm) |
Max. Speed (r.p.m.) |
Tool Interface | Clamping Force(kgf) | Bearing ID (mm) |
Bearing Lubrication |
|---|---|---|---|---|---|---|
| KRB3501 | ø110 | 8000 | BT30/BBT30 | 300±50 | ø40 | Grease |
| KRB4006 | ø120 | 10000 | BT40/BBT40 | 700±50 | ø60 | Grease |
| KRB4508 | ø130 | 12000 | BT40/BBT40 | 700±50 | ø60/ø50 | Grease |
| KRB4310 | ø140 | 10000 | BT40/BBT40 | 900±100 | ø70 | Grease |
| KRBH502 | ø140 | 10000 | HSK A63 | 1800~2300 | ø70 | Grease |
| KRB4002 | ø150 | 10000 | BT40/BBT40 | 900±100 | ø70 | Grease |
| KRB5188 | ø150 | 10000 | BT50/BBT50 | 1500±100 | ø75 | Grease |
| KRB4509 | ø150 | 12000 | BT40/BBT40 | 900±100 | ø70 | Grease |
| KRB5039 | ø155 | 10000 | BT50/BBT50 | 1500±100 | ø80 | Grease |
| KRB4166 | ø170 | 8000 | BT40/BBT40 | 900±100 | ø70/ø60 | Grease |
| KRB5032 | ø190 | 8000 | BT50/BBT50 | 1800±100 | ø100 | Grease |
| KRBH501 | ø190 | 6000 | HSK A100 | 4500~5800 | ø100 | Grease |
| KRBH024 | ø200 | 6000 | HSK A100 | 4500~5800 | ø100/ø90 | Grease |
| KRB5015 | ø200 | 8000 | BT50/BBT50 | 1800±100 | ø100 | Grease |
| KRB5509 | ø250 | 2000 | BT50/BBT50 | 1800±100 | ø130/ø120 | Grease |
