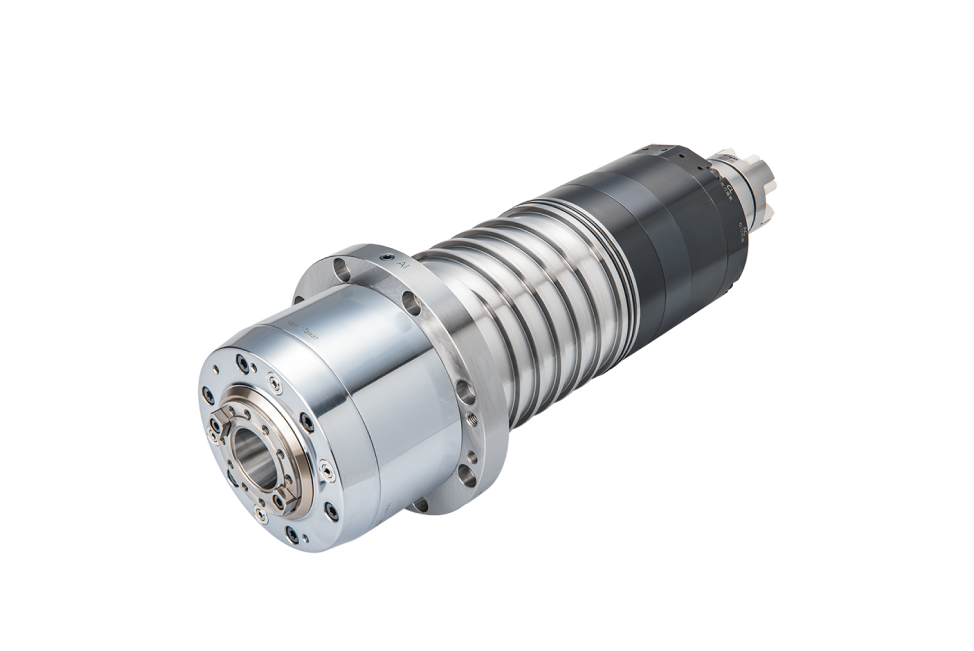

Direct Drive Spindle
Features
- High Speed
- High Cutting Efficiency
- Low Thermal displacement
| Spindle Model | Spindle OD (mm) |
Max. Speed (r.p.m.) |
Tool Interface | Clamping Force (kgf) |
Bearing ID (mm) |
Bearing Lubrication | ENERGY LABEL |
|---|---|---|---|---|---|---|---|
| KRD3048 | ø95 | 24000 | BT30/BBT30 | 300±50 | ø40 | Grease | |
| KRD3018 | ø100 | 24000 | BT30/BBT30 | 300±50 | ø40 | Grease | |
| KRD3510 | ø110 | 15000 | BT30/BBT30 | 300±50 | ø50 | Grease | |
| KRD4002 | ø120 | 15000 | BT40/BBT40 | 700±50 | ø60 | Grease | |
| KRDH009 | ø120 | 15000 | HSK A63 | 1800~2300 | ø60 | Grease | |
| KRD3505 | ø135 | 12000 | BT30/BBT30 | 300±50 | ø60 | Grease | |
| KRDH502 | ø135 | 12000 | HSK A63 | 1800~2300 | ø60 | Grease | |
| KRD4503 | ø140 | 15000 | BT40/BBT40 | 900±100 | ø70 | Grease | |
| KRD4109 | ø150 | 12000 | BT40/BBT40 | 1000±100 | ø70 | Oil-air / Grease | |
| KRD4001 | ø150 | 15000 | BT40/BBT40 | 900±100 | ø70 | Oil-air / Grease | |
| KRDH002 | ø150 | 15000 | HSK A63 | 1800~2300 | ø70 | Oil-air / Grease | |
| KRD4507 | ø160 | 15000 | BT40/BBT40 | 1100~1200 | ø70 | Oil-air | |
| KRD5503 | ø190 | 6000 | BT50/BBT50 | 1800±100 | ø100 | Grease | |
| KRDH504 | ø190 | 8000 | HSK A100 | 4500~5800 | ø90 | Grease | |
| KRD5506 | ø190 | 10000 | BT50/BBT50 | 1800±100 | ø90 | Grease | |
| KRDH008 | ø200 | 6000 | HSK A100 | 4500~5800 | ø100 | Oil-air / Grease | |
| KRD5511 | ø210 | 6000 | BT50/BBT50 | 1800±100 | ø100/ø90 | Grease |
