Down T Horizontal Machining Center

Down T Horizontal Machining Center

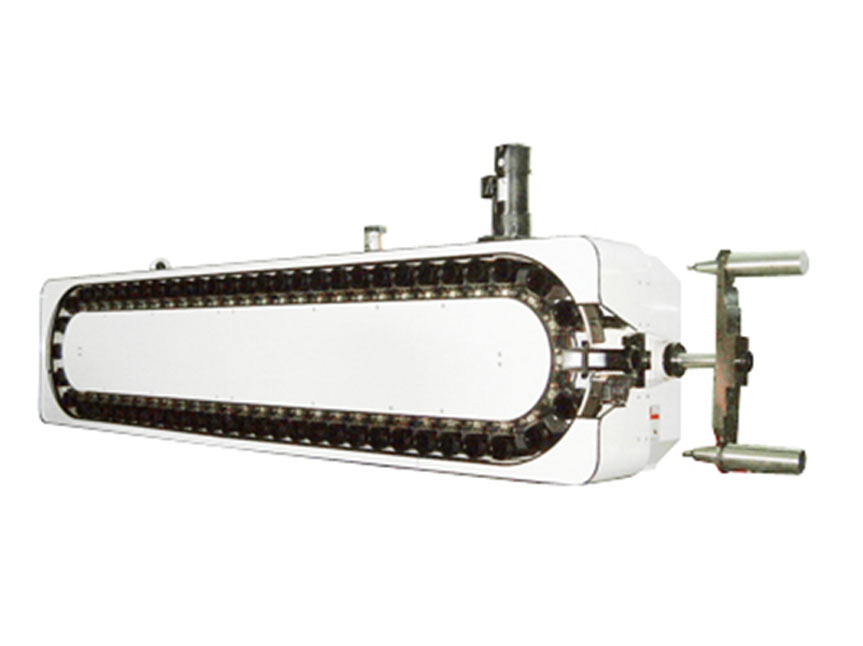

Standard Chain Type(HCG-A)

Features

  • Cam wheel indexer features high indexing accuracy.
  • Pre-clamping mechanism, more steady with heavy tool.
  • Light weighted tool arm, small load and low inertia.
  • Separate tool claw, low maintenance fee.
Standard Chain Type
Standard Chain Type (HCG-A) (#40-60T)

Down T Horizontal Machining Center

Standard Chain Type

Item #40 #50
Tool Max. Dia. Ø75 Ø125
Tool Max. Dia. without Adjacent Tools Ø120 Ø250
Tool Max. Length 300mm 350mm
Tool Max. Weight 8kg 18kg
Tool Capacity 32/40/60T 24/32/40/60T
ATC Tool Change Time 1.8sec/60Hz 2.0sec/50Hz 2.50sec/60Hz 2.91sec/50Hz
