Synchronized Unclamping Type(TSY)

Features

  • Cylinder type Cam wheel indexer features high indexing accuracy and reliability.
  • High rigidity and precision metal tool pot.
  • Light weighted tool arm suitable for high speed tool change.
  • All imported electric components.
  • Cam type synchronized tool unclamping.
Synchronized Unclamping Type of tooling magazines

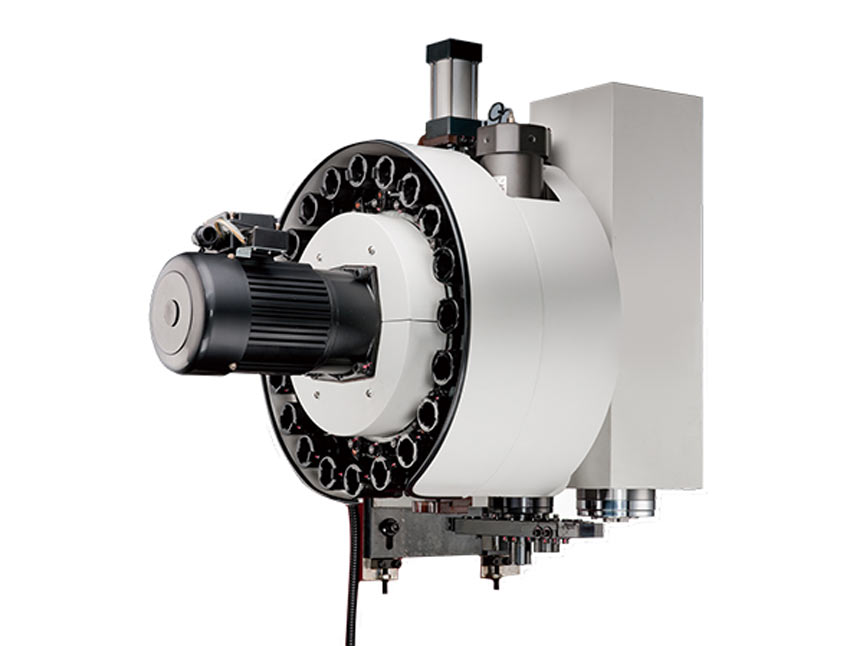

Synchronized Unclamping Type (TSY) (#30-20T)
Synchronized unclamping type (TSY) tool change motion

Vertical Machining Center

Synchronized Unclamping Type

Item #30 #40
Tool Max. Dia. Ø69 Ø69
Tool Max. Dia. without Adjacent Tools Ø135 Ø135
Tool Max. Length By M/C By M/C
Tool Max. Weight 3kg on one side 4kg on one side
Tool Capacity 16/20T 16/20T
ATC Tool Change Time 0.87sec/60Hz 1.05sec/50Hz 1.25/60Hz
