Double Column Machining Center

Double Column Machining Center

Fixed Beam – Chain Type(VCH)

Features

  • Cam wheel indexer features high indexing accuracy.
  • Easy PLC, accurate tool pot positioning.
  • Light-weighted tool arm, small load and inertia.
Fixed Beam – Chain Type of tooling magazines

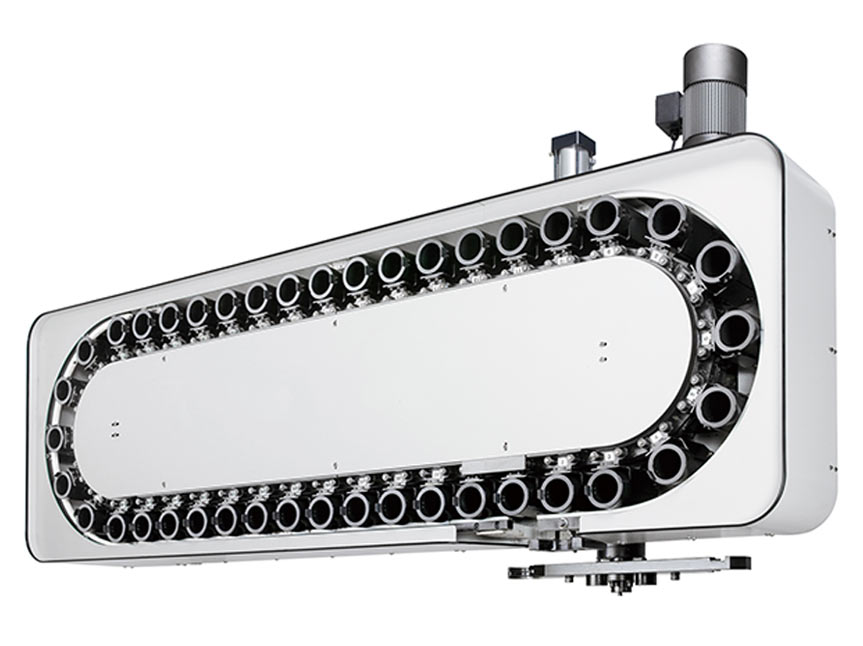

Fixed Beam – Chain Type (VCH) (#40-32T)

Double Column Machining Center

Fixed Beam – Chain Type

Item #40 #50
Tool Max. Dia. Ø75 Ø125
Tool Max. Dia. without Adjacent Tools Ø120 Ø250
Tool Max. Length 300mm 350mm
Tool Max. Weight 8kg 18kg
Tool Capacity 32/40/60T 32/40/60T
ATC Tool Change Time 1.8sec/60Hz 2.0sec/50Hz 2.5sec/60Hz 2.91sec/50Hz
