Right T Horizontal Machining Center

Right T Horizontal Machining Center

Synchronized Chain Type Tool Magazine(HCC-A)

Features

  • The tool magazine is driven by high efficient servo motor.
  • Steel tool pot chain is free from deformation after long operation time.
  • The auto door ATC mechanism is synchronized with the cam; synchronized tool exchange and tool unclamping, features extraordinary reliability.
  • Integrated tool changer and auto door make easy installation, replace the traditional metal door to save assembly time and service frequency and cost.
  • Tool arm pre-clamping design.
  • Magazine power: servo motor.
Synchronized Chain Type Tool Magazine

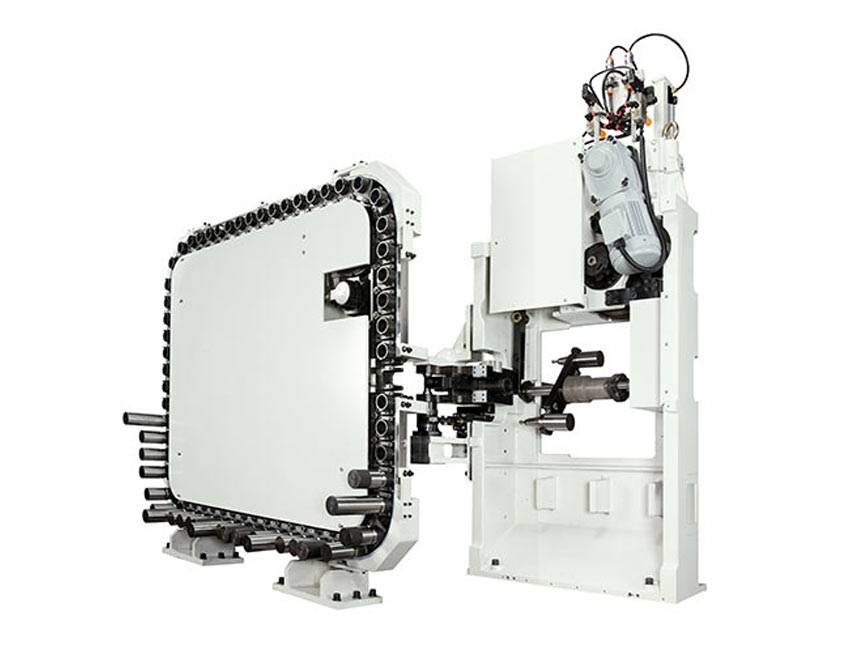

Synchronized Chain Type Tool Magazine(HCC-A)-2
Synchronized Chain Type Tool Magazine for Right T Horizontal Machining Center

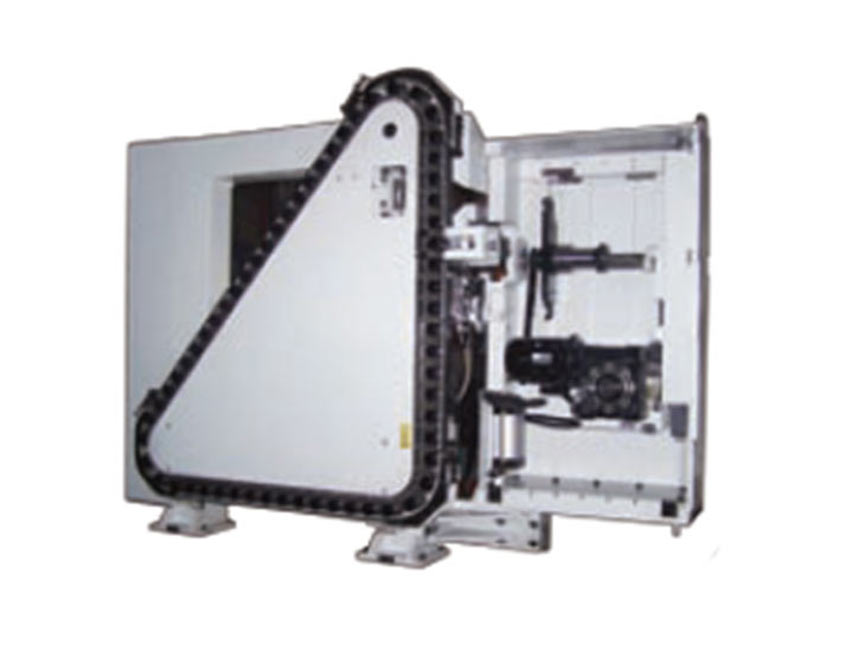

Synchronized Chain Type Tool Magazine(HCC-A)-1

Right T Horizontal Machining Center

Synchronized Chain Type Tool Magazine

Item #40
Tool Max. Dia. Ø75
Tool Max. Dia. without Adjacent Tools Ø160
Tool Max. Length 500mm
Tool Max. Weight 20kg
Tool Capacity 40/60/80/120T
ATC Tool Change Time 1.0sec / 60Hz (≦6.5kg) 1.3sec / 60Hz (≦6.5~8kg)
