Double Column Machining Center
Double Column Machining Center
Fixed Beam – Landed Closed Type(DCM-B)
Features
- Easy installation, expandable tool load
- Capable for heavier, longer tool load
- Hydraulic power supply
- Special specification under request
- Vertical/Horizontal tool change optional
- Hydraulic power box, freezer prepared by customer
- Magazine power source: electric/hydraulic/servo
- ATC power source: hydraulic

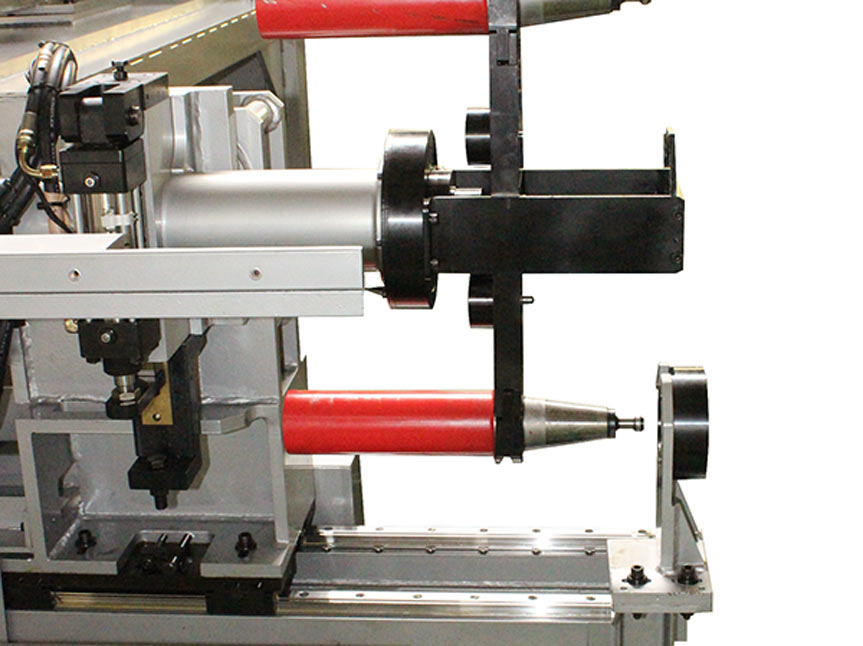

Fixed Beam – Landed Closed Type (DCM-B) - part

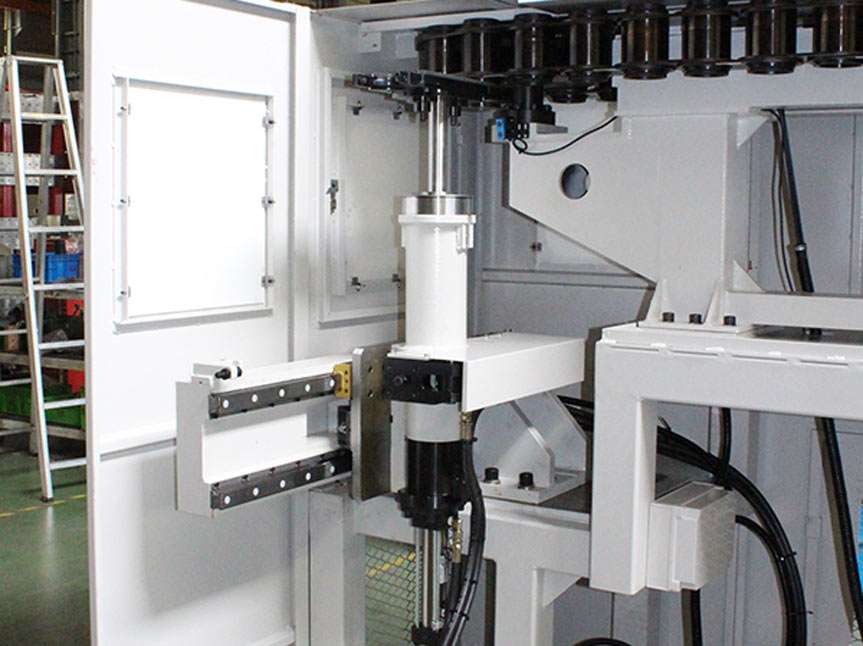

Fixed Beam – Landed Closed Type (DCM-B) - part

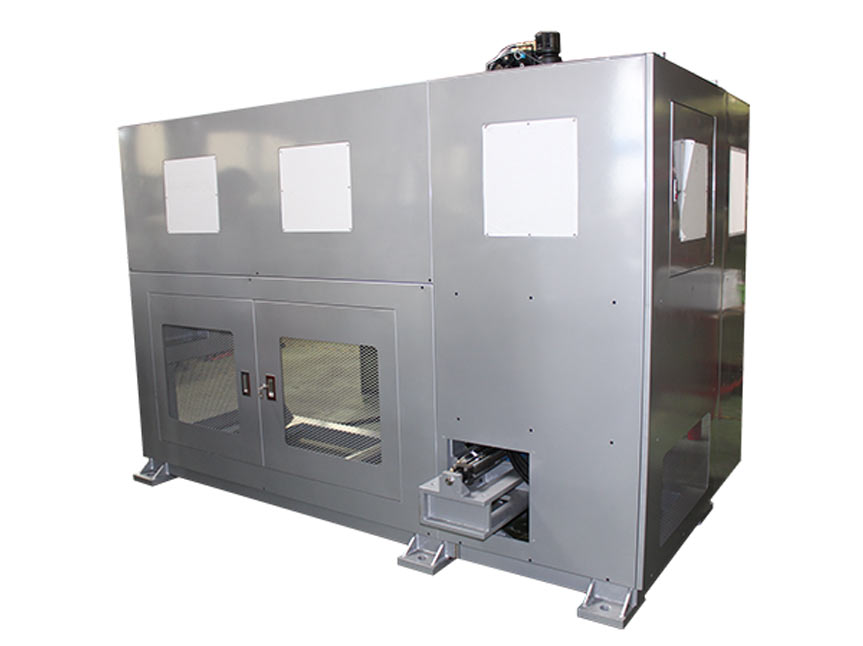

Fixed Beam – Landed Closed Type (DCM-B) - part
Double Column Machining Center
Fixed Beam – Landed Closed Type
| Item | #50 |
|---|---|
| Tool Max. Dia. | Ø125 |
| Tool Max. Dia. without Adjacent Tools | Ø215 |
| Tool Max. Length | 350mm |
| Tool Max. Weight | 25kg |
| Tool Capacity | 24/30/40/60/80T |
| ATC Tool Change Time | 10sec/60Hz |
