Double Column Machining Center

Double Column Machining Center

Five axis-swivel vertical type(HCF-A)

Features

  • Hydraulic scissors type tool gripper; two-step tool change mechanism features high tool change speed.
  • Tool change mechanism is hydraulic driven instead of traditional rack-transmission design.
  • Steel tool pot chain is free from deformation after long time operation.
  • Pre-clamping design avoids tool drop.
  • Magazine power source: electric/hydraulic/servo
  • ATC power source: hydraulic
  • Vertical/Horizontal tool change optional
Five axis-swivel vertical type of tooling magazines

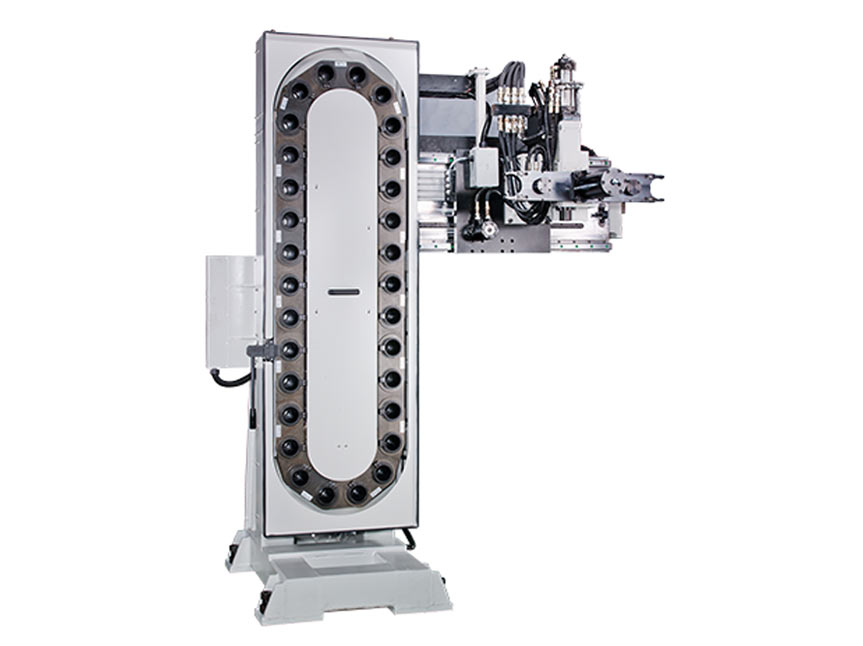

Five axis-swivel vertical type (HCF-A)(#50-24T)
Five axis-swivel vertical type of tooling magazines for Double Column Machining Center

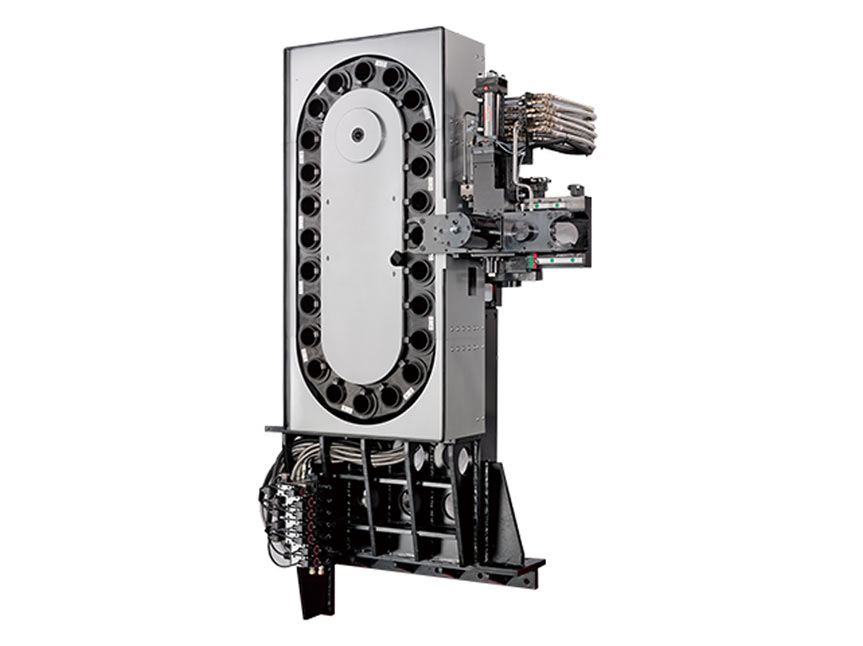

Five axis-swivel vertical type (HCF-A)(#50-32T)

Double Column Machining Center

Five axis-swivel vertical type

Item #50
Tool Max. Dia. Ø125
Tool Max. Dia. without Adjacent Tools Ø250
Tool Max. Length 350/400/450mm
Tool Max. Weight 25kg
Tool Capacity 32/40/60T
ATC Tool Change Time 7sec/60Hz
