Right T Horizontal Machining Center

Right T Horizontal Machining Center

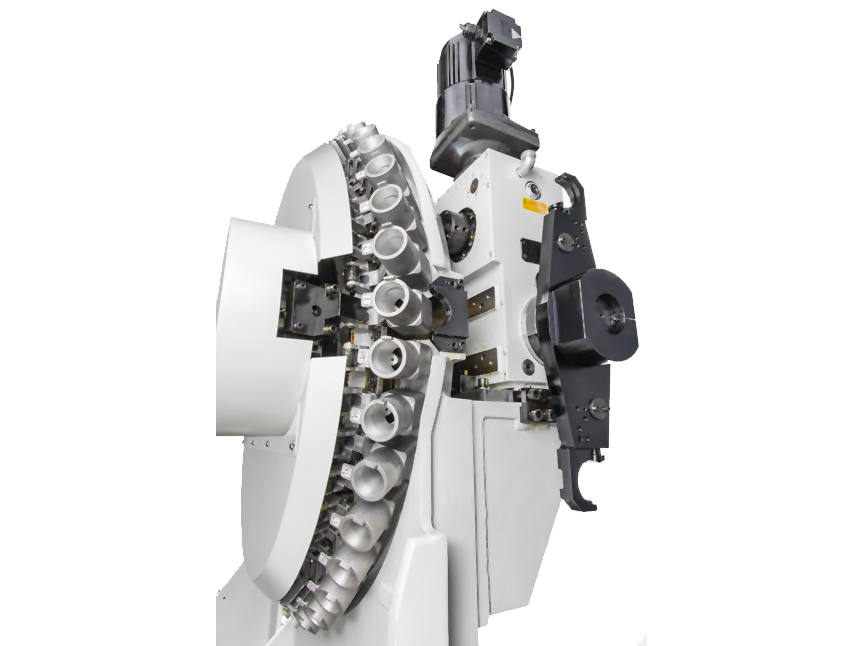

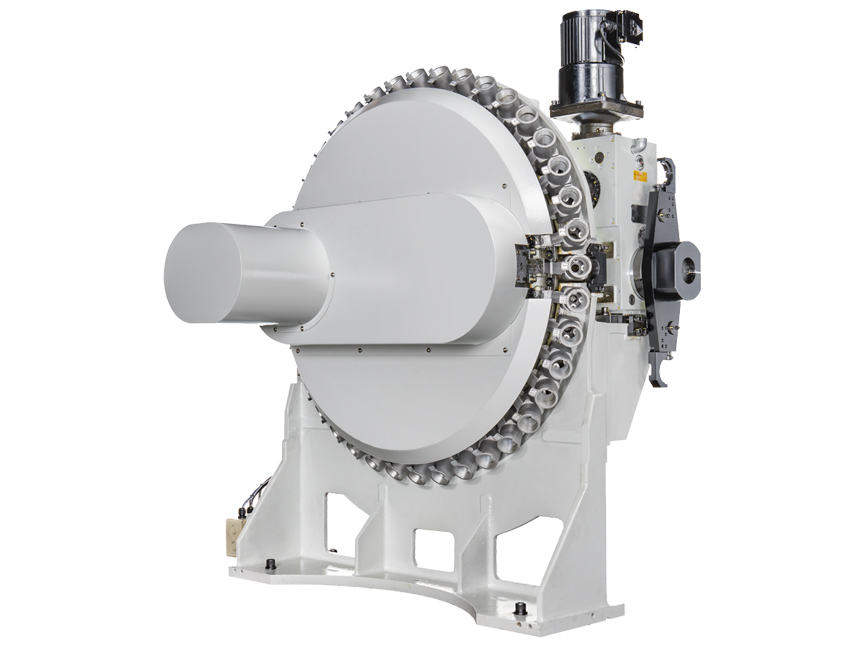

Radiation Angle Design(R4607)

Features

  • Faster from disc to preparing-tool-change position, time-saving 60%.
  • Extreme speed tool pot displacement, only 0.2 seconds/pot.
  • Effectively reduce the side volume of the machine, save space.
  • Transmission structure heavy tool strengthening.
  • Suitable for high-speed processing.
Radiation Angle Design
Radiation Angle Design(R4607)
Right T Horizontal Machining Center Radiation Angle Design
Radiation Angle Design(R4607)

Right T Horizontal Machining Center

Radiation Angle Design

Item #40
Tool Max. Dia. Ø85
Tool Max. Dia. without Adjacent Tools Ø170
Tool Max. Length 500mm
Tool Max. Weight 8kg
Tool Capacity 40/60T
ATC Tool Change Time 1.1sec (≦2.5kg) 1.5sec (≦2.5~8kg)
