Vertical Machining Center
Carousel Type(VCA)
Features
- Geneva indexer mechanism, high indexing accuracy.
- Twin gripping fingers assure stable function when the carousel is rotating.

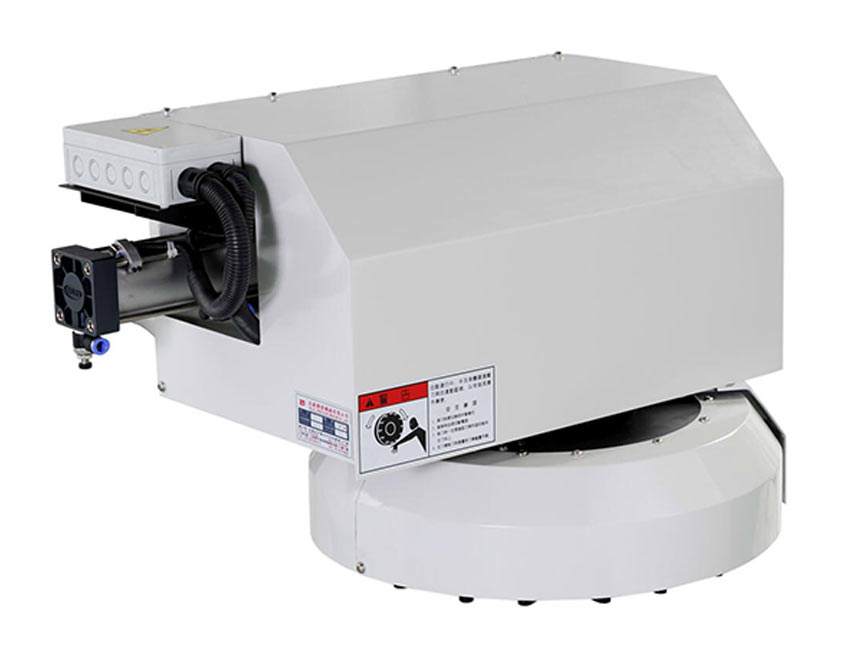

Carousel Type (VCA) (#40-10T)

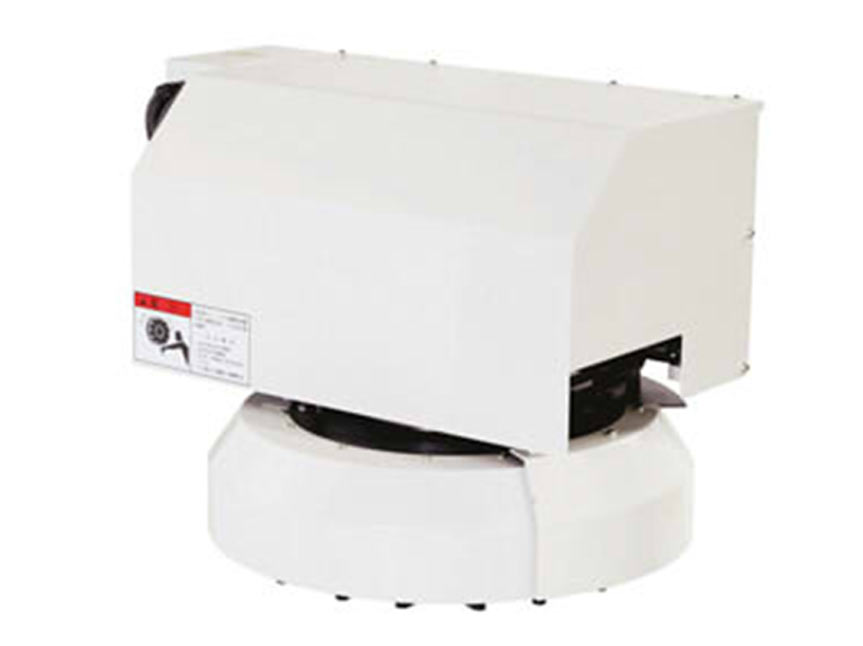

Carousel Type (VCA) (#40-16T)

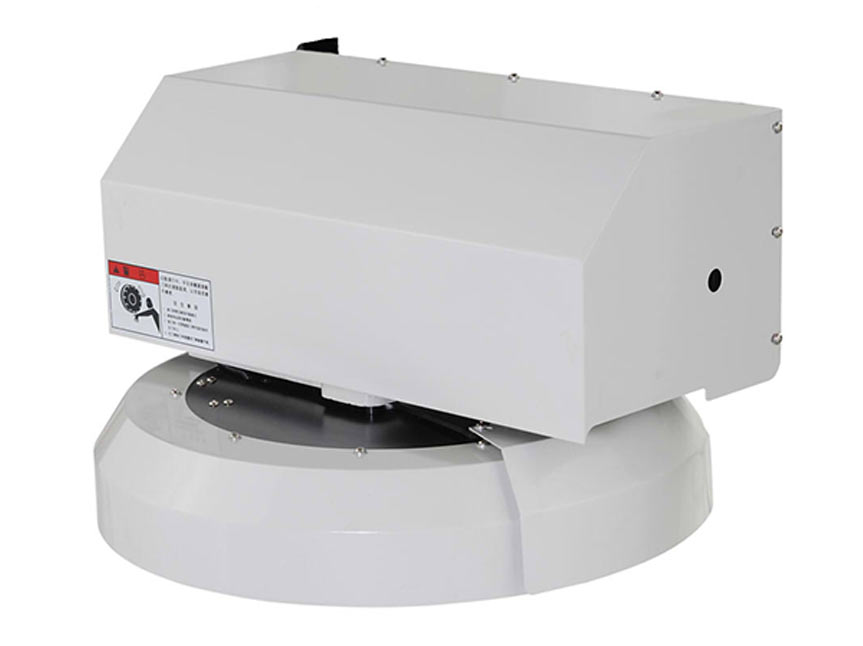

Carousel Type (VCA) (#40-10T)
Vertical Machining Center
Carousel Type
| Item | #30 | #40 | #50 |
|---|---|---|---|
| Tool Max. Dia. | Ø80 | Ø90 | Ø125 |
| Tool Max. Dia. without Adjacent Tools | Ø120 | Ø130 | Ø200 |
| Tool Max. Length | 200mm | 300mm | 400mm |
| Tool Max. Weight | 5kg | 8kg | 15kg |
| Tool Capacity | 10/12/16/20T | 10/16/20/24T | 16/20T |
| ATC Tool Change Time | 0.6sec | 0.7sec | 0.7sec |
| Tool pot shifting time | One-way movement 1.6sec | One-way movement 2.0sec | One-way movement 2.4sec |
